Portable Plasma Pipe Cutting Machine: CNC Tube Processing Excellence

Professional CNC Pipe Cutting Redefined

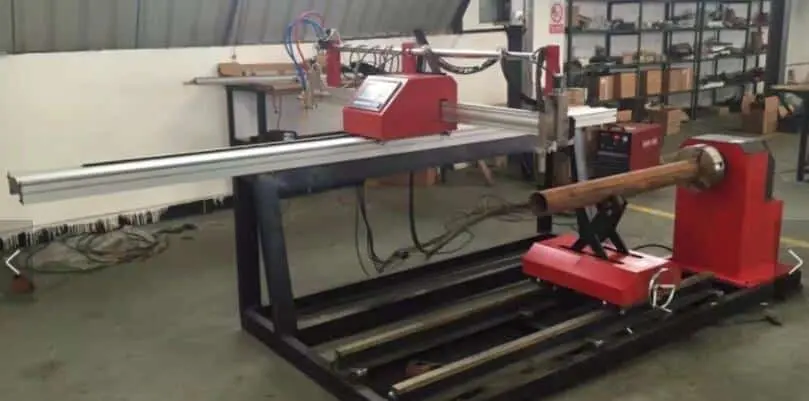

The Portable Plasma Pipe Cutting Machine is specifically engineered to bring heavy-duty CNC precision to the field. Unlike stationary machines that require pipes to be transported to a factory, this mobile solution allows for on-site fabrication of complex industrial piping systems. It is the ideal choice for massive infrastructure projects, including oil and gas pipelines, large-scale HVAC installations, and specialized architectural steel structures.

This system excels in executing Saddle Cuts, Miter Joints, and Beveling with a precision tolerance of ±0.2mm. By utilizing advanced CNC algorithms, the machine automatically calculates the intersecting lines between two pipes, eliminating the need for manual templates, chalking, or guesswork. This not only speeds up the production cycle by over 70% but also ensures a perfect fit-up for high-pressure welding, drastically reducing the labor cost associated with secondary grinding and rework.

Key Technical Advantages

• Intelligent Arc Voltage THC: The Torch Height Control system ensures a constant distance between the nozzle and the pipe surface, even if the pipe is slightly oval or uneven.
• Dynamic Rotary Chuck: Our high-torque drive system provides smooth rotation for pipes ranging from 60mm to 600mm, maintaining stability across various wall thicknesses.
• Pre-Loaded Library: The CNC controller includes dozens of built-in templates for various intersection types (T-joints, Y-joints, multi-angle miter cuts), making it easy for operators with minimal training to produce professional results.

Maintenance and Operation Safety

To maintain the Portable Plasma Pipe Cutting Machine's peak performance, it is essential to perform daily checks on the rail alignment and ensure the rotary chuck remains free of metal slag. We recommend using a filtered air supply to prolong the life of your plasma consumables. For stainless steel cutting, ensure the use of appropriate shielding gases to prevent oxidation at the cutting edge. Safety gear, including UV-rated eye protection and heat-resistant gloves, must be worn at all times during CNC operation.
