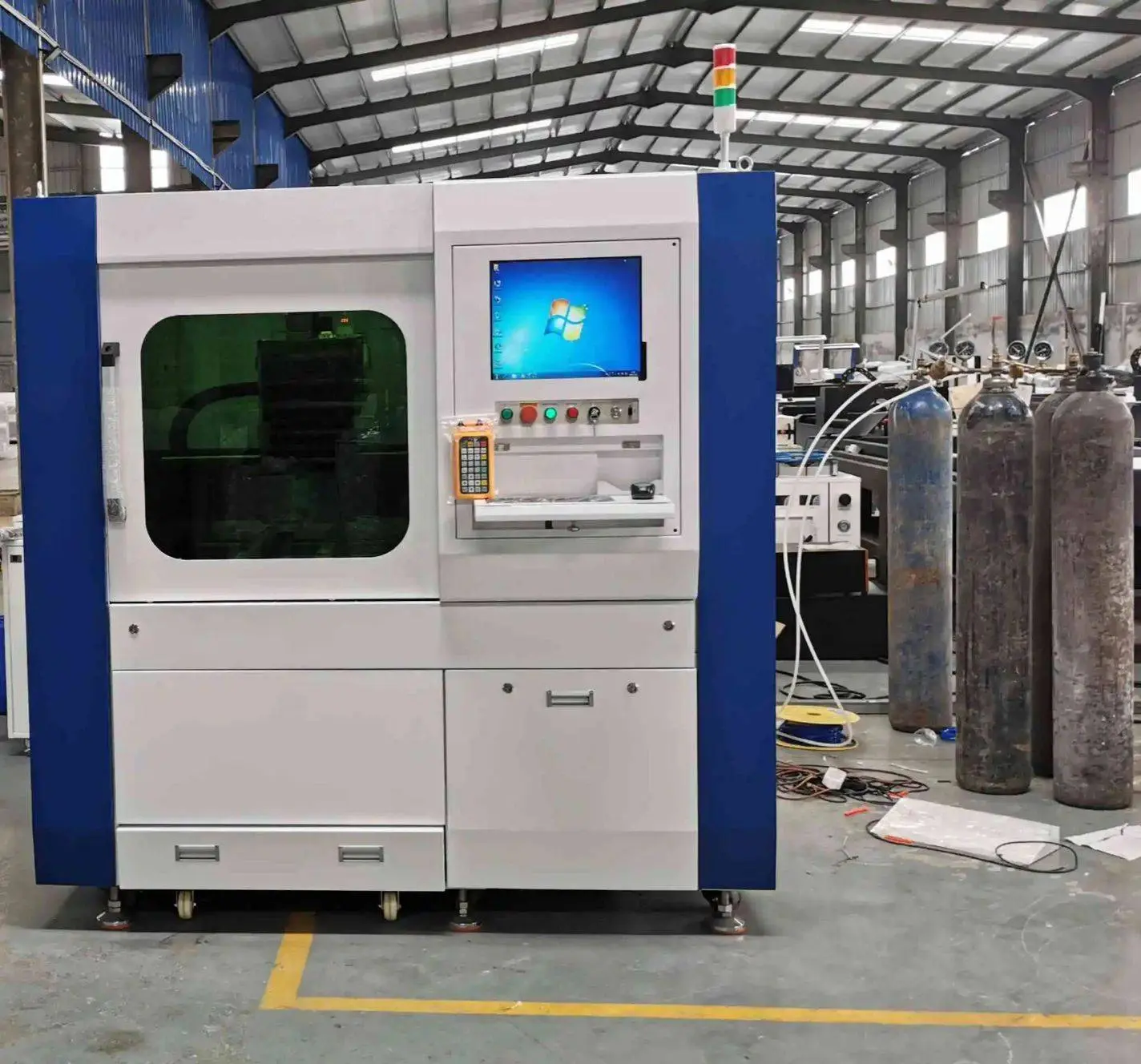

SF Series small fiber laser cutting machine

main parts

Raytools Laser Cutting Head
Optimized optical configuration and smooth and efficient airflow design
Ball Screw Transmission
Grinding Precision Screw Transmission, improve machine precision perforamnce
Yaskawa Servo driver and motor
Adjustment-free function, realize instant-on-use, automatic tuning function, improve performance
Raycus /max Fiber Laser Generator
Raycus fiber laser generator, 1500w 2000w 3000w 4000w 6000w .etc can be optional.
Industry PC Controller
A set of reasonable laser cutting solutions  for the medium power laser cutting system, easy operation
S&A Water Chiller
It adopts dual temperature dual control mode and can switch to intelligent temperature control mode

Model

SF Series

Laser machine cutting area

600x600mm, 1300mmX900mm

Fiber Laser Power

1000w-4000w

Laser wave length

1064nm

Transmission system

High quality ball screw transmission

X.Y axis location accuracy

±0.01mm

X.Y axis repeat location accuracy

±0.01mm

X.Y axis max moving speed

30m/min

Max cutting speed

1–30m/min(it will according to metal material and laser power)

Cutting thickness

Detailed in the following cutting thickness

Application Material

Metal sheet
Iron/CS/SS/Aluminum/Copper and all kinds metal

Gross weight

1100KG

Net weight

1000KG

Machine size

1280*940*1870mm
