Automatic Tube Laser Cutting Machine with Bundle Loader
Auto feeding for round, square and rectangular tube, 6, 9 or 12 m
An LT series fiber laser tube cutter fitted with a chain loader or an automatic bundle loader. The loader separates one tube from the bundle, aligns it and hands it to the chuck while the previous tube is still cutting, so the laser keeps working with one operator looking after the cell instead of lifting every tube.
- Free test cut on your tube
- 3-year machine warranty
- Installed in 80+ countries
- Factory direct since 2005
- Loading
- Chain or bundle
- Round tube
- Ø20-520 mm
- Length
- 6 / 9 / 12 m
- Laser
- 1.5-20 kW
- Repositioning
- ±0.03 mm
What is an automatic tube laser cutting machine?
An automatic tube laser cutting machine, also sold as an auto feeding tube laser cutting machine, a fully automatic laser tube cutting machine, an automatic laser tube cutting machine or an automatic laser pipe cutting machine, is a CNC tube laser cutting system with its own loading system, sometimes called an automatic feeding laser cutter. On a manual machine the laser waits while the operator lifts, aligns and clamps the next bar. On an automatic tube cutting machine that work is done by the loader during the cut, which matters most when parts are short, the job runs for hours and the same tube size repeats.
The cutting side is the LT series tube laser machine: self-centring chucks, a fiber laser source and a shape library for common cuts. This page covers what the loader adds.
How auto feeding works
- Bundle in. A crane or forklift sets a strapped bundle on the loader’s belt slings, or tubes are laid side by side on the chain conveyor.
- Separate. The bundle loader lifts and tilts the bundle so tubes roll out in a single layer, then a separating arm picks off one tube.
- Align. The tube is turned to the right orientation (square and rectangular tube flat side down) and set level with the chuck centre.
- Transfer. Lift arms raise the tube onto the supports and the rear chuck closes on it.
- Cut. The chucks feed and rotate the tube while the laser cuts each part to length with its holes, slots and end shape.
- Unload. Finished parts leave the cutting zone at the front of the machine, and the short remnant is dropped before the next tube arrives.
Steps 1 to 4 run while the previous tube is still cutting. The laser stops only for the chuck change-over, not for the whole loading cycle.

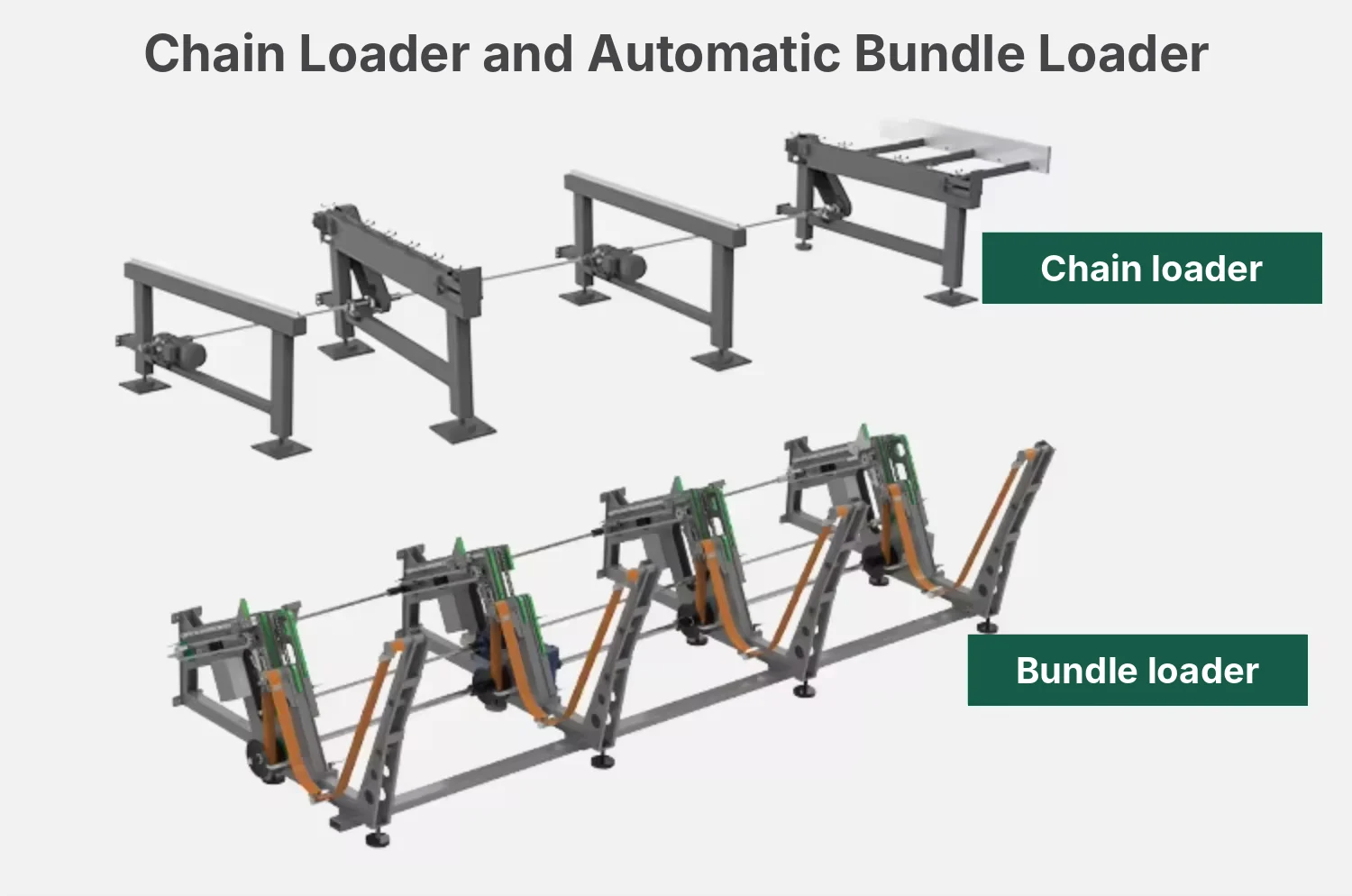

Chain loader or automatic bundle loader
PCL offers two pipe feeding devices for the LT series. Both sit beside the machine bed and pass tubes sideways onto the supports in front of the rear chuck.
| Chain loader | Automatic bundle loader | |
|---|---|---|
| How tubes go on | Laid on the chains by crane or by hand, several at a time | Whole strapped bundle set on the slings |
| Separating tubes | The chains carry tubes forward one by one | Done by the loader |
| Best for | Mixed sizes, open sections, frequent job changes | Long runs of round, square and rectangular tube |
| Operator | Refills the chains during the shift | Changes the bundle, empties part bins |
| Cost | Lower | Higher |
Get the price for your tube and volume
The price depends on the LT model, laser power, bed length and loader type. Send your tube range, lengths and monthly volume, and we reply with a configuration and quotation.
Manual loading or auto feeding?
Tube cutting automation pays back through laser hours: an automated tube cutting machine earns its loader when the laser would otherwise stand idle while tubes are lifted in by hand.
| Your work | Better choice |
|---|---|
| Long parts, few per tube, many different sizes | Manual loading: the LT series |
| Large or heavy sections, channel and H-beam | Manual or crane loading, or a chain loader |
| Short parts, many per tube, same size for hours | Bundle loader |
| Second or night shift with one person on the floor | Bundle loader |
| Mixed tube sizes, small batches, tight budget | Chain loader |
Laser cutting in place of sawing and drilling
Many tube shops still process tube on a sawing line, then drill, punch or mill holes on a second machine. An automatic tube laser does the work of that whole line: it cuts to length, makes the holes and slots, cuts notches for bending and shapes the tube ends for welding, all in one clamping. That removes the marking-out, the second set-up and the burr from sawing, and the program can be repeated next month without new jigs.
| Saw, then drill or punch | Automatic tube laser | |
|---|---|---|
| Cut to length | Saw | Laser, square or mitred |
| Holes and slots | Second machine, often with a jig | Same pass, any shape |
| Intersections and saddles | Milling or hand work | Same pass |
| Changing to a new part | New fixtures and stops | Load a new program |
| Loading | Bar feeder on the saw | Chain or bundle loader |
Specifications
- Base machine
- LT240, LT360 or LT520 tube laser
- Round tube
- Ø20-240 / 360 / 520 mm
- Square and rectangular tube
- up to 240, 360 or 520 mm
- Tube length
- 6 m, 9 m or 12 m, other lengths to order
- Loading
- chain loader or automatic bundle loader
- Laser power
- LT240 1.5-6 kW; LT360 and LT520 up to 12 kW, 20 kW on request
- Laser source
- Raycus, IPG or Max fiber laser
- Control
- CypCut, CypTube or FSCUT; built-in shape library
- Chucks
- self-centring pneumatic front and rear chucks; square standard, round optional
- Repositioning accuracy
- ±0.03 mm
- Warranty
- 3 years machine, 2 years laser source
Wall thickness by laser power and chuck sizes for each model are on the LT series page.
