5 axis pipe cutting and bevelling machine

5-axis pipe plasma cutting beveling machine is an advanced piece of equipment used for cutting and beveling pipes and tubes with precision and versatility. Here are some key features and information about this type of machine:

5-Axis Cutting: A 5-axis pipe plasma cutting beveling machine offers movement in five axes: X (horizontal), Y (vertical), Z (depth), A (rotation around the X-axis), and C (rotation around the Z-axis). This allows for complex cuts and beveling angles on the pipe or tube, enabling more intricate and precise designs.

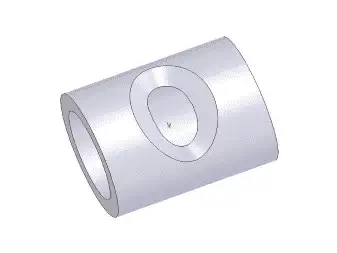

Beveling Capability: In addition to cutting, this machine is equipped with beveling capabilities. It can create beveled edges on the pipe or tube, which is essential for various applications that require welding or joining pipes at specific angles.

Pipe Diameter and Thickness: it is typically designed to handle a wide range of pipe diameters and thicknesses. It can accommodate small to large diameter pipes, and the thickness capacity can range from a few millimeters to several centimeters.

CNC Control: A 5-axis pipe plasma cutting beveling machine is typically equipped with a CNC control system. The CNC system allows for precise and automated control of the cutting and beveling process. The machine can be programmed with specific cutting and beveling patterns, angles, and dimensions, and the CNC system controls the movement of the cutting torch and beveling head accordingly.

Software and CAD Integration: The CNC control system can be integrated with computer-aided design (CAD) software. This enables the importation of cutting and beveling patterns from CAD software to the machine’s control system. The software can also generate cutting and beveling programs based on the desired dimensions and designs.

Safety Features: As with any plasma cutting machine, safety measures are important. A 5-axis pipe plasma cutting beveling machine may include safety interlocks, emergency stop buttons, and protective enclosures to ensure operator safety during operation.

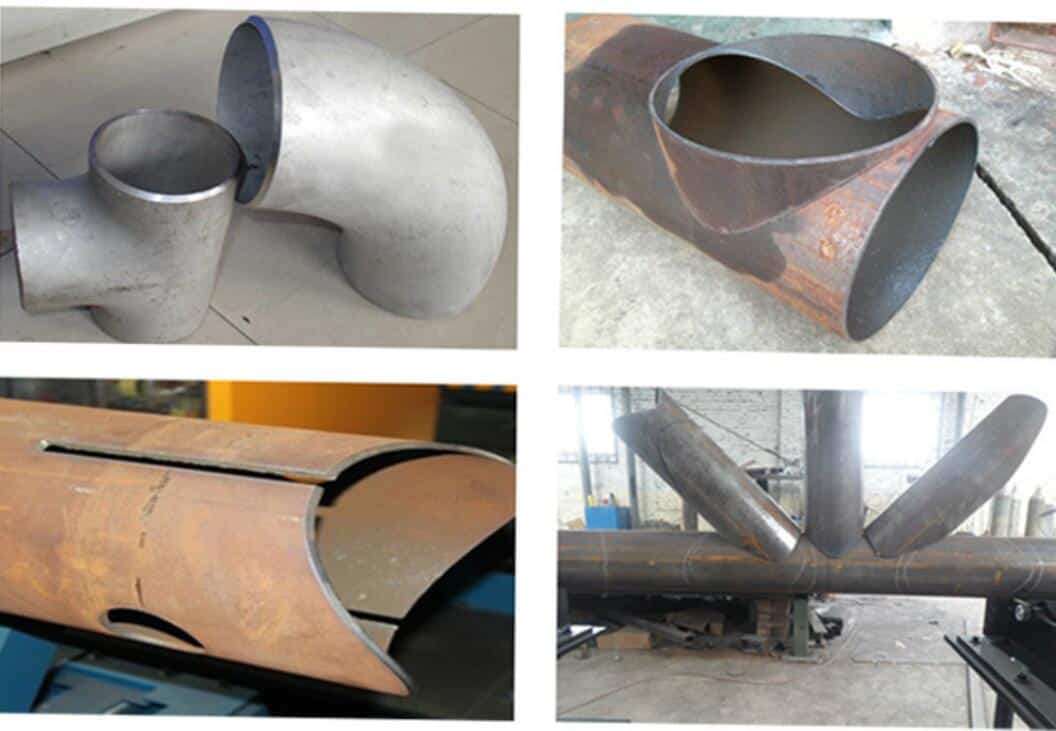

Applications: This machine is commonly used in industries such as oil and gas, pipeline construction, structural fabrication, and shipbuilding. It is utilized for cutting and beveling pipes and tubes with complex geometries and angles, enabling precise fit-up and welding during assembly.
