1. Application of gantry structure and integrated casting beam to achieve higher stiffness, stability and anti-vibration.
2. High-performance laser source and stable operating system make the cutting effect reach the best.
3. The machine has a perfect cooling system, lubrication system and dust removal system to ensure its stable, efficient and durable operation.
4. The machine can automatically adjust the height to maintain a constant focus and stable cutting quality.

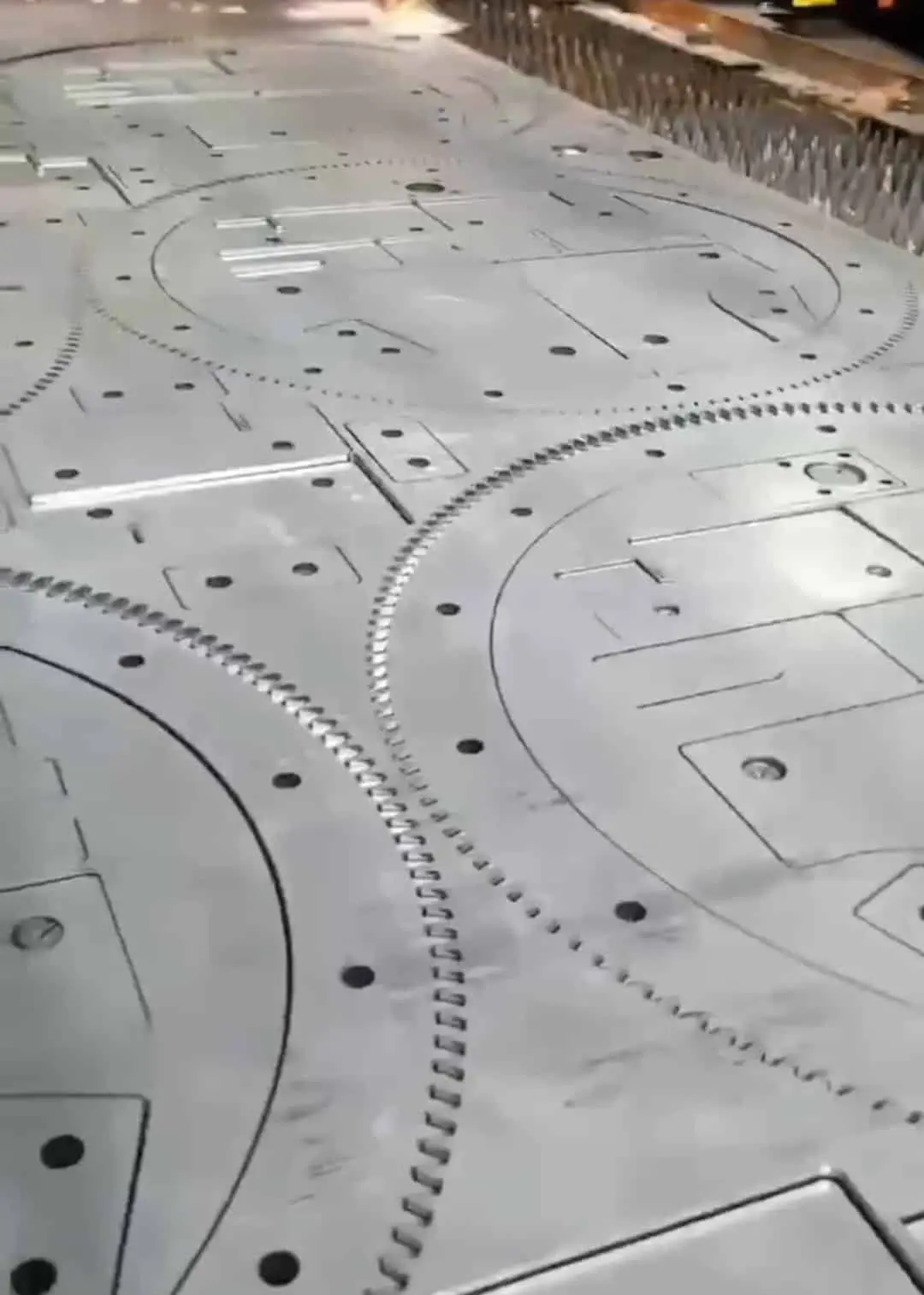

5. The machine is used to cut various metals with excellent and stable cutting quality.
6. Specialized CAD/CAM automatic programming software and automatic nesting software designed to maximize raw material savings.
7. Access to CNC system through Ethernet interface makes communication and remote monitoring possible during laser cutting process.
We follow the power of the laser cutting machine will be able to cut the maximum thickness of the following comb, note that the size of the fiber core diameter is different from the laser module, the thickness of the plate can be cut under the same power slightly different.
1000W (25μm) single module: carbon steel 1 – 10mm, stainless steel 1 – 5mm;
1500W (50μm) single module: carbon steel 1-14mm, stainless steel 1-6mm, aluminium 1-5mm, brass 1-4mm;
2000W (50μm) single module: carbon steel 1-18mm, stainless steel 1-8mm, aluminum 1-6mm, brass 1-6mm;
3000W (50μm) single module: carbon steel 1-22mm, stainless steel 1-10mm, aluminium 1-6mm, brass 1-6mm;
4000W (50μm) single module: carbon steel 1-25mm, stainless steel 1-12mm, aluminium 1-8mm, brass 1-8mm;
6000W (100μm) single module: carbon steel 1-25mm, stainless steel 1-16mm, aluminium 1-14mm, brass 1-14mm;
8000W (100μm) multi-module: carbon steel 1-30mm, stainless steel 1-20mm, aluminum 1-16mm, brass 1-16mm;
10000W (100μm) multimode: carbon steel 1-35mm, stainless steel 1-25mm, aluminum 1-18mm, brass 1-18mm;
12,000W (100μm) multimode: carbon steel 1-40mm, stainless steel 1-30mm, aluminum 1-20mm, brass 1-20mm;
15000W (100μm) multimode: carbon steel 1-45mm, stainless steel 1-30mm, aluminum 1-22mm, brass 1-22mm;
20000W (100μm) multi-mode: carbon steel 1-70mm, stainless steel 1-35mm, aluminum 1-40mm, brass 1-20mm;
The above data are for reference only, and fluctuate slightly according to the processing parameters to the material of the plate.
