CNC plasma air cutting machine
Model:
P1530,P1560,P2040,P2060
Price range
$3580.00 -$10,000.00/ Set
Plasma cutting system
Hypertherm, LGK
Rating Scale
Rated 9.9 out of 10
Cutting thickness
Plasma cutting ≤40mm, air cutting≤200mm
Cutting size
1500X3000mm,1500X6000mm,2000X4000mm,2000mmX6000mm
Payment Terms
30% deposit, full payment after machine test
Table of Contents
machine parameter
| No. | Description |
P series plasma cutting machine |
| 1 | Working Size |
1500*3000mm(2000*3000/2000*4000/1500*6000/2000*6000mm,other size can be customized) |
| 2 | Z Axis Clearance | 200mm |
| 3 | Table Type | Knife table (Teeth table And Water table can be optional) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Stepper Motor And Drivers(Servp motor is optional) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |

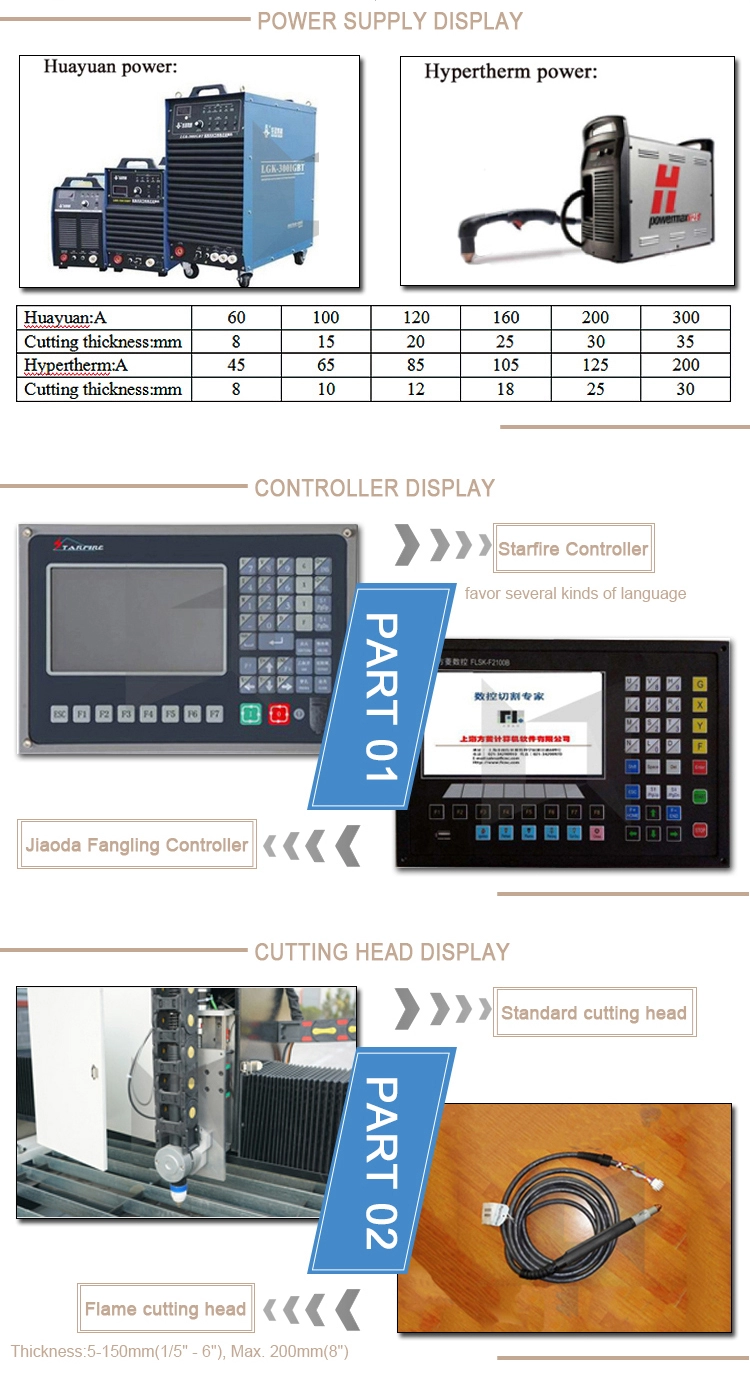

| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm |
| 13 | Operating System | Starfire Controller/Start Controller/JiaoDa fangling controller |
| 14 | Working Material | Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal |
cutting videos

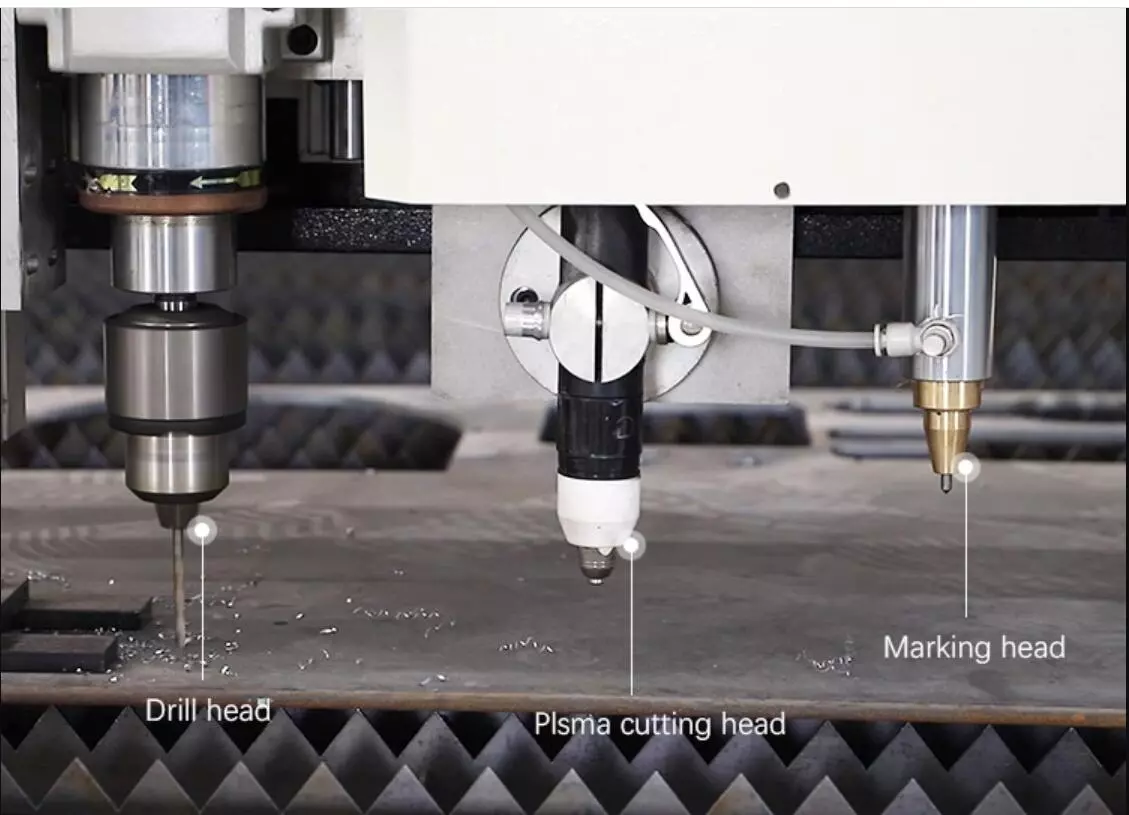

machine details
Need plasma air cutting machine?
Please tell use the diameter and length of your pipes, we can give you the professional solution
