H-Beam Coping Machine: Robotic Plasma and Oxy-Fuel Beam Profile Cutting

H, I, U and L sections, web height 100-800 mm

A dedicated beam coping machine, also known as a plasma coping machine, for structural steel. A 6-axis industrial robot carries a plasma or oxy-fuel torch round H-beams, I-beams, channels and angles, cutting copes, weld access holes, bevels, notches and bolt holes in one station. Without a chuck, sections feed straight through, which keeps beam and channel work moving fast.

  • Free test cut on your beam
  • 3-year machine warranty
  • Installed in 80+ countries
  • Factory direct since 2005

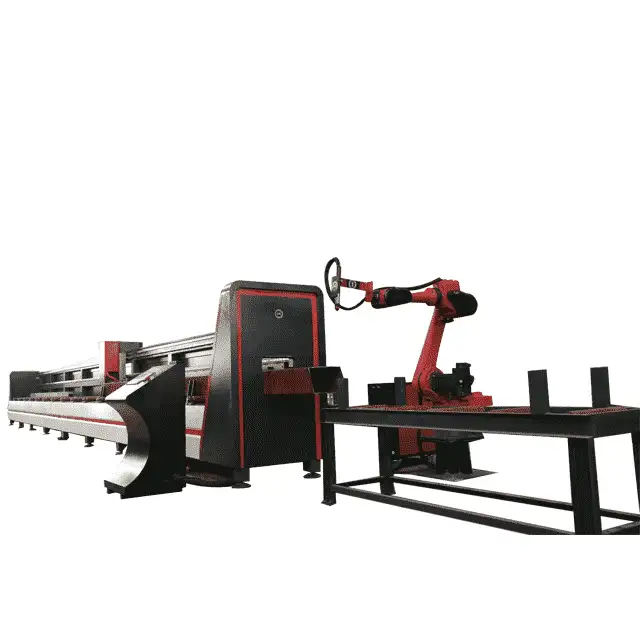

PCL H-Series robotic beam coping machine, full view
Sections
H, I, U, L
Web height
100-800 mm
Robot
6-axis
Cutting
plasma + oxy-fuel
Accuracy
±0.5 mm

What the H-Series does

The H-Series beam cutting machine is built around a 6-axis robot and a plasma or oxy-fuel torch. Most of the cutting on a structural member happens at its ends and connections. A beam coping machine takes over that work from the layout table, the hand torch and the grinder. On the H-Series the section rests on the infeed, sensors measure its real position, and the robot cuts each operation in turn from the DSTV file. Because the robot reaches the web and both flanges from one position, an H-beam or channel is finished without being turned or re-clamped.

Beam coping operations

OperationWhat is cut
End copeFlanges and web cut back for beam-to-beam connections
Weld access holeRadiused hole at the web-flange junction
Notch and clipped cornerClearance cuts on beams, channels and angles
BevelWeld preparation on flange and web ends
Bolt holes and slotsIn web and flanges, from the DSTV file
Cut to lengthSquare or mitred ends

Weld access hole shapes and bevel types are covered in our guides to weld access holes and coping and beam bevel cutting.

Specifications

Sections
H-beam, I-beam, channel (U), angle (L)
Web height
100-800 mm
Robot
6-axis industrial robot
Cutting
plasma and oxy-fuel in one station
Positioning accuracy
±0.5 mm
Section measurement
sensors compensate for rolling deviation
Software
PCL CNC, DSTV import from Tekla
Round pipe
not supported (no chuck)
H-Series precision cutting head on the 6-axis robot
Cutting head on the 6-axis robot: plasma and oxy-fuel in one station.

Section length, infeed and outfeed, and the plasma source are configured to your work. Send your largest section and longest member for a quotation.

Get the price and a free test cut

The price depends on your section range, longest member and cutting systems. Send them, or a DSTV file of a typical member, and we reply with a configuration and quotation.

H-Series or 8-axis plasma beam cutter?

H-Series coping machine8-axis robotic plasma beam cutter
SectionsH, I, channel, angleH, I, channel, angle, box section, round pipe
Round pipeNo (no chuck)Yes, up to Ø800 mm
CuttingPlasma and oxy-fuelPlasma
Best forHigh throughput on beams and channelsMixed work including pipe

For fine bolt holes and laser-quality bevels, compare the H-beam laser cutting machine.

One system instead of a coping crew

Coping, access holes and bevels on beams are usually marked and cut by hand, then ground to fit. On fabricators’ figures, the H-Series replaces the work of 5 to 8 manual workers with one automated station and one operator, and parts arrive at fit-up ready to weld.

H-Series beam coping video

H-Series robotic beam coping machine video
H-Series robotic coping of H-beams and channels

Plasma and oxy-fuel in one station

Plasma handles the normal range of flange and web thickness with speed and a narrow kerf. For heavy sections with thick flanges, the oxy-fuel torch takes over in the same station, so heavy columns and girders do not need a separate flame-cutting step.

Where it is used

Steel building fabricators

Rafters, columns, purlins and bracing with copes and holes.

Bridge and heavy structures

Cross girders and stiffened members with thick flanges.

Industrial plants

Platforms, pipe racks and equipment supports from channels and angles.

Before you order: what to check

CheckWhy it matters
Section rangeWeb height 100-800 mm; pipe needs the 8-axis machine
Thickest flangeSets the plasma source and whether oxy-fuel will be used
Longest memberSets infeed and outfeed length
Detailing softwareDSTV export from Tekla or similar

Why buy from PCL

Since 2005

Factory in Jinan, China.

80+ countries

Machines installed worldwide.

3-year warranty

On the machine; consumables excluded.

Free test cut

On your member before you order.

On-site installation

With operator training.

Remote support

By WhatsApp and video.

Related machines

Frequently asked questions

What is a beam coping machine?

A machine that cuts the ends and connections of structural sections: copes, notches, weld access holes, bevels and bolt holes. The PCL H-Series does this with a 6-axis industrial robot carrying a plasma or oxy-fuel torch.

Which sections can the H-Series cut?

H-beams, I-beams, channels (U) and angles (L) with a web height from 100 to 800 mm. It is built for open sections; it has no chuck and does not cut round pipe.

Why is it faster on H-beams and channels?

The section feeds straight through the station without being clamped in a rotating chuck, and the robot reaches the web and both flanges from one position. For a shop that mainly cuts beams and channels, that means less handling time per member.

How is it different from the 8-axis plasma beam cutter?

The 8-axis machine also cuts round pipe and box sections and suits mixed work. The H-Series is dedicated to H, I, U and L sections for higher throughput on beam and channel work, and adds oxy-fuel for thick flanges.

Plasma or oxy-fuel?

Plasma for normal flange and web thickness, fast and with a narrow kerf. Oxy-fuel in the same station for thick flanges on heavy sections.

How accurate is it?

Positioning accuracy is ±0.5 mm. Sensors measure the real section and compensate for rolling tolerances such as flange tilt and web offset before cutting.

Can it read Tekla files?

Yes. Parts are imported as DSTV files from Tekla Structures and other detailing software; the PCL CNC software turns them into robot paths.

Can it cut bolt holes?

Yes, in the web and flanges. Plasma holes suit most structural bolted connections; where drilled or reamed holes are specified, tell us and we will advise.

Can I get a test cut?

Yes. Send a drawing or DSTV file of a typical member and we cut it at our factory in Jinan and send you the video.

What is the warranty?

3 years on the machine, consumables excluded, with on-site installation, operator training and remote support.

Get a quote and a test cut

Send your section sizes and a typical member. We confirm the configuration, quote it and can cut a sample.
