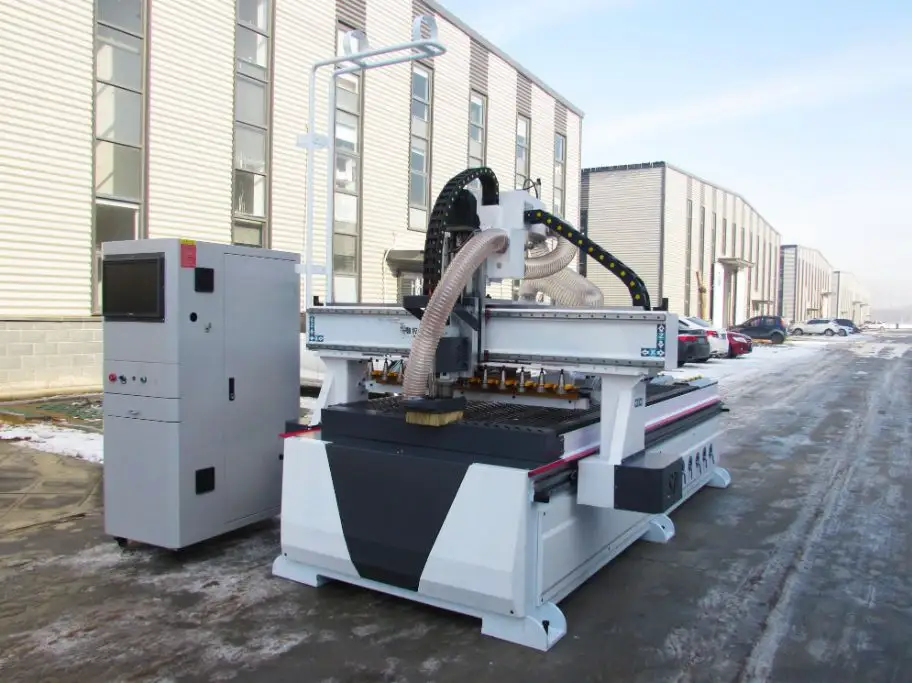

CW 1325 is a good cnc router with high-speed main axis, cooling of water circulation, it has little noise and pollution. The router cnc bed is made from pure Aluminum, which ensures the parallelism, verticality and concentricity and greatly increases the precision and speed of the engine bed. It is applied in cutting of kneading board of large size and making of large-scale relief and label.
1) The maximum tranverse speed is 9mt/m and the maximum feed speed is 6mt/m
2) 25mm dia. hardened guide rails with linear ball bearing bushings
3) 5mm pitch, 20mm ball screw
4) High freguency spindle with freguency inverter, 24.000rpm
5) Accepts compaible HP/GL, G-code commad
6) 3-d Toopath simulation that is easy to correct mistakes
7) Applications: engraving or routing signs, prototype or production parts, prototype, nclosure panels, templates, I.D. Tags, award plaques, etc.
8) Easily cuts light metals such as aluminum and copper, with precision and speed to perform the finest 3D engraving.
Description | Parameter |
X,Y,Z Working Area | 1300*2500*150mm |
Packing Size | 1900* 3100*1850mm |
Traveling Positioning Accuracy | ±0.05mm |
Repeatability Precision Accuracy | ±0.05mm |
X/Y Structure | Gear and Rack, Hiwin Linear Rail From Taiwan |
Z Structure | Ball Screw, Hiwin Linear Rail From Taiwan |
Max.Consume Power | 20kw |
Max.Speed | 0-30000mm/min |
Max.Working Speed | 0-15000mm/min |
Spindle Power Motor | 3 kw Step motor/ 2.2KW |
Spindle Speed | 0-24000rpm |
Working Mode | Step motor |
Working table type | T-slot aluminum |
Working Voltage | AC220V/50~60HZ |
Command Code | G code(*uoo,*nc,*mmg, *plt) |
Operating System | NCStudio |
Operating Method | PC Control |
Net Weight | 900kg |
Gross Weight | 1200kg |
Running Circumstance | Temperature: 0°C~45°CRelative humidity: 30%~75% |
Optional Device | Design software: original type3 from France |

Applicableareas:
Model industry; It can engrave and cut on non-mental materials such as plastic boardPVC materials, wood board etc. If you use the machine with spindle above 5KW,you can engrave and cut on the metal materials such as copper, aluminum ,ironetc
