The 4-axis linkage +1 axis tube cutting machine is a special cutting machine with four independent axes of control that can be used to cut a variety of tubular materials such as square tubes, round tubes and channels. This type of cutting machine combines multi-axis control and a specialized cutting head to flexibly cut tubes of different shapes and meet diverse cutting needs.
Specifically, the 4-axis linkage +1 axis pipe cutting machine can realize the following functions:
Cutting square pipes: through 4-axis linkage, the cutting head can move in different directions, which makes the cutting machine able to accurately cut square cross-section pipes, such as square pipes and rectangular pipes.
Cutting round pipe: the cutting head can rotate and move along the surrounding trajectory of the pipe, thus realizing the cutting of round cross-section pipes, such as round pipe, cylinder, etc.
Cutting channel steel: the cutting machine can adjust the angle and position of the cutting head to adapt to different widths and heights of channel steel to realize high-precision cutting of channel steel.
Multiple cutting forms: cutting machine can also perform multiple cutting forms according to the needs, such as straight line cutting, bevel cutting, shaped cutting, etc., which is suitable for the cutting of complex shaped pipes.
Automated operation: many 4-axis linkage pipe cutting machines are equipped with automatic loading and unloading systems, which can realize automated production and improve work efficiency.
The flexibility and efficiency of 5 axis linkage tube cutting machines make them widely used in metal fabrication, construction, aerospace, rail transportation and other industries. Whether it’s a simple straight line cut or a complex shaped cut, these cutting machines are able to meet the cutting requirements of a wide range of tubular materials, increasing productivity and ensuring cut quality.
| Items | Parameters |
| Cutting diameter | Φ= 60mm~800mm, or others |
| Channel width | 50mm ~ 450mm or others |
| Cutting length | 6m-15m or others |
| U/L pipes profile | Dimensions requires 50mm ~ 450mm |
| Cutting method | Plasma / air |
| Plasma cutting wall thickness | According to plasma power source |
| Flame cutting wall thickness | 60mm-100mm |
| Plasma cutting thickness | 0-40mm according to plasma source |
| Requirements of the workpiece ovality | ≤1% |
| Cutting speed | 10~2000mm/min |
| Move speed | 10~6000 mm/min |
| For maximum weight cut tube | 5000Kg |
| No. | Items | Parameters |
| 1 | Cutting diameter | Φ= round : 60mm~800mm Effective cutting 6m-15 meter |
| 2 | Cutting Square pipe | Dimensions requires 50mm ~ 450mm Effective cutting 6m-15m |
| 3 | U/L pipes profile | Dimensions requires 50mm ~ 450mm Effective cutting 6m-15m |
| 4 | Cutting method | Plasma / flame |
| 5 | Plasma cutting wall thickness (quality cutting thickness) | According to plasma power source |
| 6 | Flame cutting wall thickness | 60mm-100mm |
| 7 | Plasma cutting thickness | 0-40mm according to plasma source |
| 8 | Requirements of the workpiece ovality | ≤1% |
| 9 | Cutting speed | 10~2000mm/min |
| 10 | Move speed | 10~6000 mm/min |
| 11 | For maximum weight cut tube | 5000Kg |

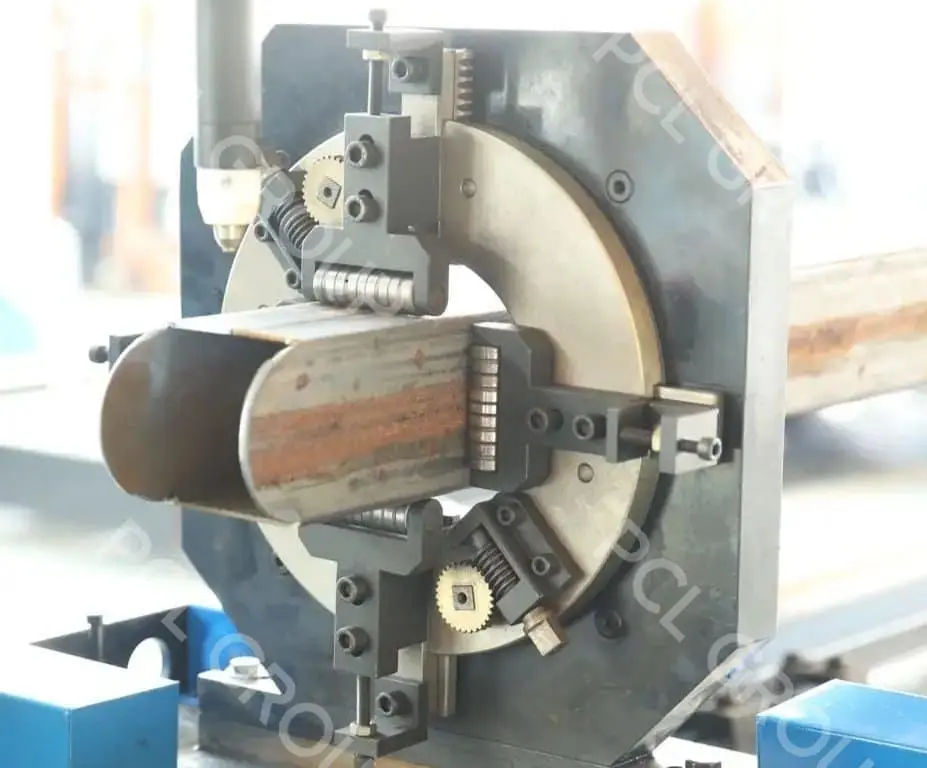

pipe profile cutting machine can cut square/rectangle tubes, channels, angles
