CNC gantry plasma cutting machine

Product features

(1)Working stability, high frequency interfere effectively plasma, lightweight portable;

(2)Support two cutting ways of flame and plasma;

(3)Economic benefits, the structure and design is contracted. it adopts humanistic positive man-machine conversation and  operate easily;

(4)Cutting with high quality, high effect level, high precision;

(5)English and Chinese interface can free to convert;

(6)Pre-sale will train and after-sale will track service.

Product advantage

1.Less investment, the higher cutting efficiency, lower operating and maintenance cost!

2.when cutting the thickness of the steel plate under 30mm , The gantry plasma cutting machine has better advantage. plasma Cutting costs is  about 1/10 of the laser cutting and 1/6 of water jet cutting.

3.This  gantry plasma cutting machine is suitable for large, medium and small mines, widely used in automobile, shipbuilding, engineering machinery, agricultural machinery, suitable for carbon steel (flame cutting), and stainless steel.

4. Gantry type beam, double-side driving motors, compact, reliable and effective, suitable for wide track working; China top brand or imported guiding rails for horizontal transmission, precise and stable.

5. Different cutting tools and cutting torch systems provided for flame cutting, plasma cutting, etc.

6. Composed of gas box and gas distributing system, gas pipe adopts automatic ignition device and back fire arrestor, thus a safe and stable working performance guaranteed.

7. High power plasma power source for different materials cutting.

8. Optional functions in accordance with customers requirements.

 Parameter:

Economical gantry plasma cutting machine

Model

PG3012E

PG4012E

PG5014E

PG6014E

PG7014E

PG8016E

PG1016E

Track Span(m)

3

4

5

6

7

8

10

Rail length

12

12

14

14

14

16

16

Each rail is 2m, Can be lengthened according to Users demand.

Torch No.

2 torches as standard.  Torch quantity can be customized.

Max cutting Area

2.2X10

3.2X10

4.2X12

5.2X12

6.1X12

7.2X14

9.2X14

Cutting thickness

6~200mm (flame); Depends on plasma power capacity (Plasma)

Driving Mode

Dual motorize

CNC system

American Hypertherm,Beijing Start, Domestic CNC system

Program software

Australia Fast CAM professional edition

Speed Range

0~6000mm/min

Cutting gas

Oxygen acetylene/Propane

Option

Oxy-fuel: Auto-ignition, Auto THC, Powder marking, Linear Triple Torche

Applications

plasma cutting machine can cut mild steel (flame cutting) and high carbon steel, stainless steel, aluminum, copper and other non-ferrous metal (plasma cutting), etc, be widely applied in industries such as machinery, automobile, shipbuilding, petro-chemical, war industry, metallurgy, aerospace, boiler and pressure vessel, locomotive etc.

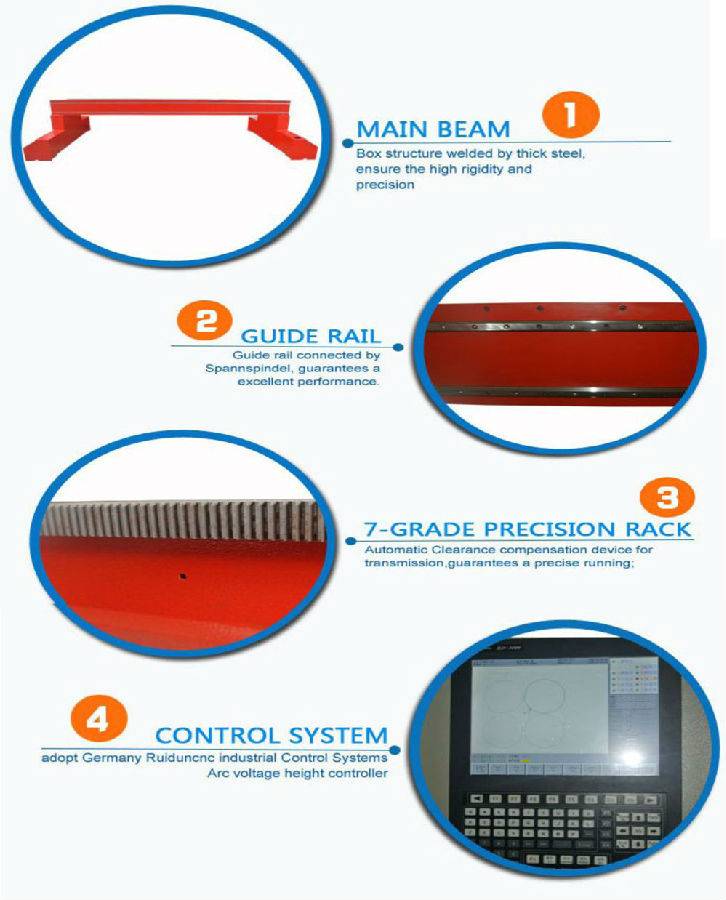

Mechanical ComponentsDescription
Crossbeam guide railTaiwan imported linear guide rail
RackLevel 7 precision rack
Auto-ignitionlongteng
Gas torch height controllerElectric button height controller for gas
Plasma torchP80
Plasma torch height controllerAutomatic arc voltage height controller for plasma
Electric ComponentsTaiwan
Drive ModeDual-drive
Cable/hose Supply Modelimported
RelayFrance Schneider
Interface10.4 inch True color Display in English
CNC control systemBEIJIN START ,developed from USA ,model:SH-2200H
Programming and nestling softwareAustralia Fast CAM
Gear boxGermany Nougat or KOR-
