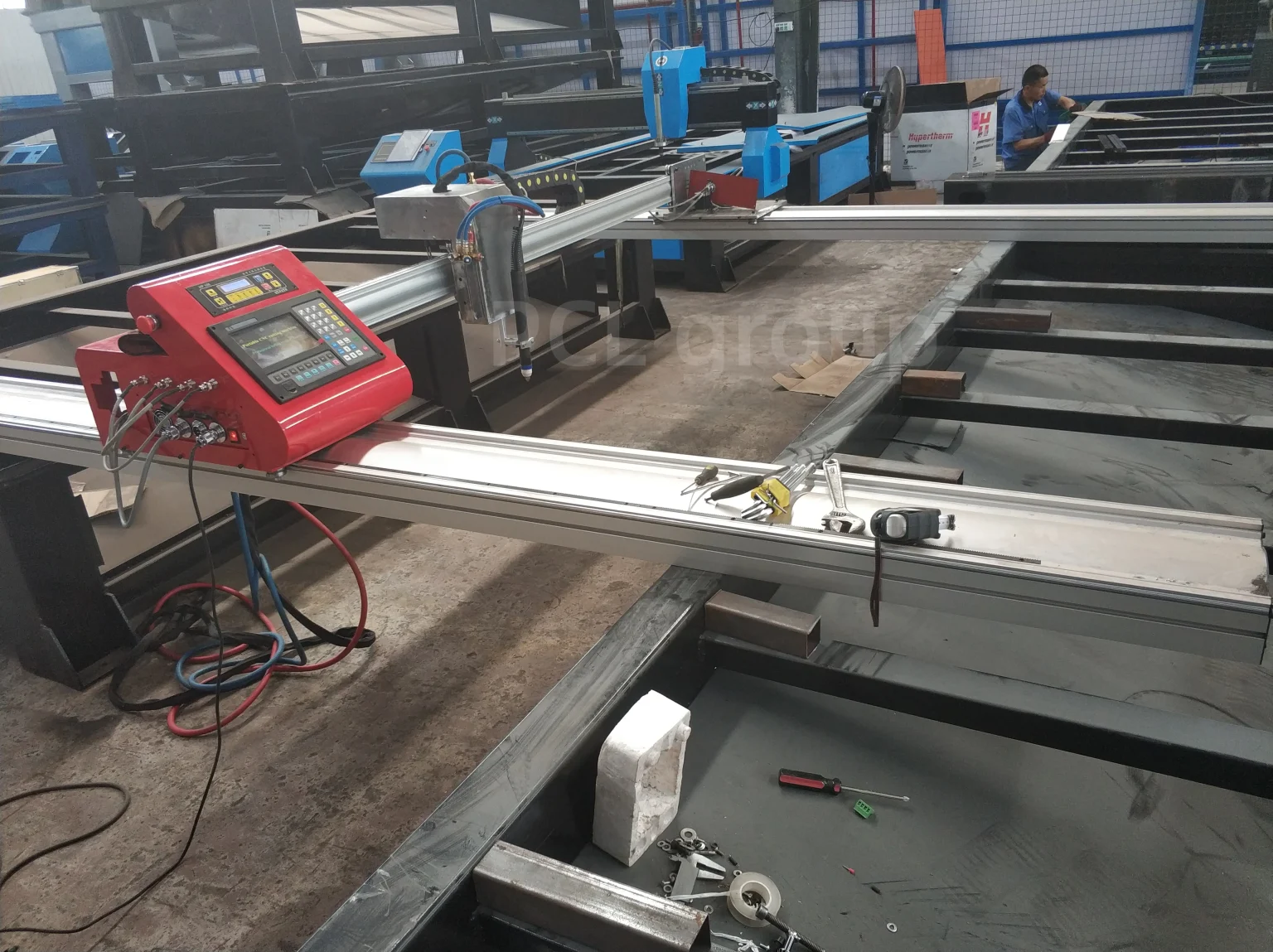

Industrial CNC Oxy-fuel and Plasma Cutting Machine
The PCL GROUP Combined CNC Oxy-fuel & Plasma Cutting Machine is engineered for maximum flexibility when processing large-format metal plates. Built on a heavily reinforced, stress-relieved steel gantry and driven by high-precision stepper or servo motors, this dual-head machine lets you seamlessly switch between the sheer power of Oxy-fuel (for extreme carbon steel thicknesses) and the high-speed velocity of Plasma (for rapid, dross-free stainless steel and aluminum processing). It serves as an indispensable workhorse for structural steel shops, shipyards, and heavy machinery fabrication plants worldwide.
CNC Models and Cutting Area Specifications
| Machine Model | Effective Cutting Width | Effective Cutting Length | Integrated Cutting System | Maximum Cutting Thickness |
|---|---|---|---|---|
| PCL-1530 | 1500 mm | 3000 mm | Oxy-fuel Torch + Plasma Torch (Multi-torch configuration available on request) |
Plasma Mode: 0.5 – 30 mm (Depends on generator power) Oxy-fuel Mode: 6 – 150 mm (Up to 200mm with custom setups) |
| PCL-2040 | 2000 mm | 4000 mm | ||
| PCL-2560 | 2500 mm | 6000 mm | ||
| PCL-3080 | 3000 mm | 8000 mm + |
Process Thickness and Material Selection Guide
| Cutting Mode | Carbon Steel | Stainless Steel | Aluminum & Alloys | Relative Cutting Speed |
|---|---|---|---|---|
| Plasma Cutting System | Excellent (0.5 – 25mm) | Optimal (1 – 20mm) | Recommended (1 – 16mm) | Very High (1500-6000 mm/min) |
| Oxy-fuel Cutting System | Optimal (20 – 150mm) | Not Applicable | Not Applicable | Moderate (Slower for extreme plate gauges) |
Why Choose PCL GROUP Dual-Process CNC Technology?
🛠️ Cost-Effective Two-in-One Architecture
By blending high-speed plasma and heavy-gauge oxy-fuel cutting systems onto a single rugged gantry frame, you cover 100% of your metal processing needs without spending money on two independent machines, saving valuable warehouse floor space.
🔥 Monumental Thickness Capacity (Oxy-fuel)
The flame cutting torch utilizes a balanced oxy-fuel gas delivery mechanism (Oxygen + Propane/Acetylene) to slice through carbon steel plates up to 150mm thick with perfectly perpendicular edge verticality and clean pierces.
⚡ Blazing-Fast Speeds on Thin Metal (Plasma)
Paired with reactive Torch Height Controllers (THC), the plasma unit continuously regulates torch-to-plate distances automatically. This results in incredibly clean, high-precision cuts on stainless steel, carbon steel, and aluminum.
🧠 Automated Nesting & Smart Control CNC
The microstep system features high-efficiency nesting software that optimizes part layouts automatically. This maximizes material utilization per sheet, cuts down scrap metal waste, and lowers operating expenses dramatically.
🏗️ Heavy-Duty Stress-Relieved Bed Frame
The rugged gantry is fully stress-relieved through precise thermal tempering treatments. It prevents physical structure distortion under intense manufacturing workloads or temperature shifts, maintaining alignment precision for life.
🔋 Open Plasma Generator Compatibility
Our industrial control setups adapt dynamically to your budget constraints. The system interfaces natively with top-tier global plasma power units like Hypertherm, as well as cost-effective domestic high-durability options.
Frequently Asked Questions on Pricing & Procurement
Why does the price range fluctuate from $8,800 to $35,000?
The total equipment cost depends highly on your physical production needs. Primary cost drivers include the **effective cutting bed width and length** (e.g., 1.5x3m vs 3x8m layouts) and the specific **amperage/brand of the plasma power source** chosen. Integrating premium components like AC Japanese Servo Motors instead of hybrid stepping drives or adding multiple oxy-fuel slave torches also shifts manufacturing configurations.
What utility infrastructure and assist gases are required?
For the Oxy-fuel cutting head, a supply of high-purity Oxygen combined with a fuel gas (Propane, LPG, or Acetylene) is required. For the primary Plasma cutting unit, clean, compressed industrial air (delivered via a reliable shop compressor and air dryer system) is fully adequate for most stainless and mild steel workloads. Precision setups may use specialized gases like Nitrogen for premium edges.
What are your international payment terms and shipping validation?
We enforce strict, secure quality protocols across our international B2B orders. A **30% advance deposit** locks your custom machine configuration into our factory production queue. Upon build finalization, we carry out real material test cuts according to your spec blueprints. You validate performance through comprehensive HD video proof or live video feed. The remaining **70% balance payment** is only released after you approve factory testing prior to loading.
🔒 PCL Commercial Policy: 30% down payment to initiate custom industrial manufacturing, 70% final balance required only after successful factory cutting validation testing.
